Metal Joints Thickness 23mm Flexible Tubing fittng For Dia 28mm
Pipe HJ-6
| Name: | Vertical structure Joints |
| Item Model: | HJ-6 |
| Combination: | HJ-6 contains 2 pcs H-8 and 1 set of M6*25 |
Material: | CRS Cold Rolled Steel |
| Color: | Black |
Surface treatment : | Electrophoresis |
Thickness: | 23 mm |
Description:
Metal joint is black, surface electrophoresis treatment, thickness
of 23mm, the product is used with lean pipe, according to different
combination process, which can realize the JIT production
management concept, with efficient logistics, DIY production
pattern practice the most advanced industrial layout, pipe and
fitting the flexible combination of absolute modern enterprise
product diversification to meet the demand of the manufacture, it
can meet the specification of any item, load mode, so that the
load, security and other requirements, because the use of multiple
tube is one of the most easy to understand and simple production
concept.
Metal joints and lean pipe can be combined into various flexible
working tables, storage racks, revolving vehicles, etc., which can
be easily disassembled, easy to assemble, and improve production
efficiency.It is designed for the assembly, production, maintenance
and operation of the factory.

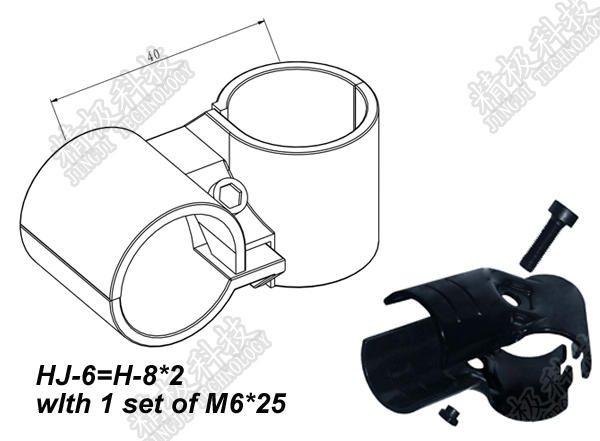

Combination:
one HJ-6 is combine with 2 pcs of H-8 & 1 set of M6*25 nut and
screw
The assembly and decomposition of bolts and nuts are free metal
connections.Metal alloys are fixed and fixed forms of bolts and
nuts. decomposition can be free,
Application:
The metal joints product with wire rod (PE lean pipe) can be
combined into various kinds of flexible workbench, storage shelves,
revolving cars, etc., and is easy to remove, flexible assembly,
improve production efficiency, etc.It is designed for the assembly,
production, maintenance and operation of the factory.
Principle of assemble:
1. First the side with films after the install link rod
2. First the install link rod bearing rod With two ends before they are
installed in the middle
3. All between chuck and can install according to design
requirements in place to ensure that each clamp screw in place
Can't use hard and chuck can hammer ,when holds pillar to ensure
the perpendicular to the ground, in order to avoid the wire rod
rack uneven force causing damage
4. when cutting cladding can pay attention to the cutting
deformation can artifacts may have special purposes.
Advantage:
With Metal joints and lean pipe can use for any assembly of
building blocks, flexible structure, beautiful appearance, no
pollution, can change the working environment, meet the
requirements.The magic change, make it have extremely strong
material processing ability.The value of resources is more valuable
to show the value of reuse.In accordance with human mechanics, only
one M6 inner hexagon can be used to complete the installation
process.Can meet the transportation and storage of all kinds of
delicate sensitive parts.
Features:
1. Clean and durable.
2. Simple assemble and disassemble.
3. Easy to handle the products.
4. Unneccessary to equip speicial facilities.
5. High safety.
6.100% material (Thickness 23 mm ).
7. Eco friendly.
Why choose our products?
1) We are direct manufcture of pipe rack system, we produce all
series of material for pipe rack system, such as metal joint,
plastic joint, lean pipe, roller track, accessory for pipe rack
system.
2) We produce this serises products metal pipe joint for more than
10 years, the earliesr factory to produce pipe rack system in Cina.
